METIS patching (METIS)

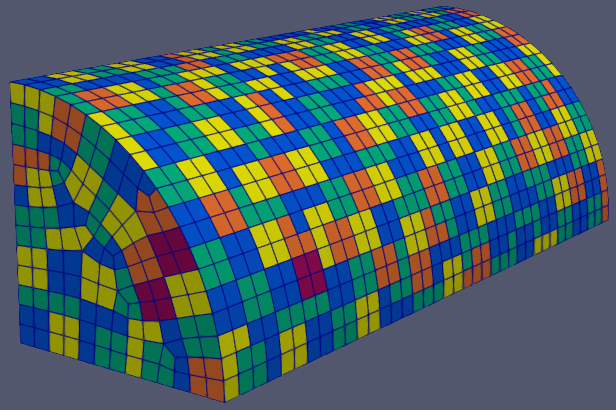

Result of METIS on a quarter cyclinder.
The METIS patching algorithm is based on the observation that clustering the enclosure faces is equivalent to partitioning the enclosure’s dual graph. This is the graph whose nodes are the enclosure faces and edges are the enclosure edges shared by faces. The METIS patching algorithm leverages the well-known METIS library [1] to partition the dual graph.
Since the METIS graph partitioner minimizes the number of edges between partitions, the resulting partitions naturally correspond to connected patches with roughly circular shapes. Moreover, by appropriately weighting the vertices and edges of the dual graph, the generated patches can have desirable properties, such as roughly constant areas or number of faces.
Note
Throughout this document the terms ‘METIS library’ or ‘METIS graph partitioner’ refer to the external library and its routines. The terms ‘METIS patching algorithm’ or ‘METIS algorithm’ refer to the patching algorithm described in this document.
Algorithm
The METIS algorithm begins by constructing the dual graph of the enclosure. By default, the face areas and edge lengths of the enclosure are computed and assigned as weights to the corresponding elements of the dual graph, respectively the vertices and edges. This weighted graph is passed to the METIS library, which partitions the dual graph vertices and hence produces a patching of the enclosure. Finally, a fix-up routine breaks up disconnected patches, ensuring that the final output consists only of connected patches.
Outline
The following is a high-level outline of the METIS algorithm.
Initialization
Compute the area and normal of each face.
Generate the dual graph of the mesh (i.e. face adjacency graph). Faces at angles greater than MAX_ANGLE are not adjacent.
Let NPART = NFACE / METIS_FACE_PATCH_RATIO, where NFACE is the total number of faces in the enclosure.
If METIS_FACE_WEIGHT is true, generate the vertex weights of the dual graph. The vertex weights are the areas of the corresponding faces divided by the minimum face area.
If METIS_EDGE_WEIGHT is true, generate the edge weights of the dual graph. The edge weights are the Euclidean lengths of the corresponding mesh edges divided by the minimum edge length.
Initialize all other parameters of the METIS graph partitioner.
Graph Partition
Run the METIS graph partitioner on dual graph with the given weights and other parameters. Let each partition of the dual graph to be a new patch. Since METIS can produce less partitions than requested, we have NPATCH <= NPART.
Split patches
Loop through the patches and check whether each patch is connected. If not, then create a new patch for each of its connected components. This step is needed because METIS is free to create disconnected partitions with the recommended default parameters.
Dual Graph
During initialization, the METIS algorithm constructs the face adjacency graph (i.e. dual graph) of the enclosure. This graph is then partitioned by the METIS library to produce enclosure patches.
The face adjacency graph is defined by the topology of the mesh and the MAX_ANGLE namelist parameter which controls the maximum allowable angle between the (normals of) adjacent faces. Specifically, two topologically adjacent faces at a angle greater than MAX_ANGLE will not share an edge in the adjacency graph. The connected components of the face adjacency graph thus represent collections of faces that are bounded by ‘sharp’ edges (angles greater than MAX_ANGLE) or the mesh boundary itself.
Partitioning objective
By default, the METIS algorithm uses the edge-cut partitioning objective (see METIS_OBJTYPE). With this objective, the number of edges (or the sum of their weights) that straddle the different partitions is minimized. Also, the number of vertices (or the sum of their weights) assigned to each partition is constrained to be approximately the same across the partitions.
The communication volume partitioning objective can also be used, but it is intended for partitioning meshes among parallel processes. As such, the communication volume objective will not be discussed in this document but is left as an option for interested users. See the METIS documentation [1] for more details on this objective type.
The METIS_EDGE_WEIGHT and METIS_FACE_WEIGHT parameters affect the weights assigned to the edges and vertices of the dual graph, and thus affect the final patch configuration. These parameters are discussed in detail below.
Edge Weight
When the METIS_EDGE_WEIGHT parameter is false, the dual graph edges are assigned a weight of 1. In this case, the number of edges that straddle different partitions is minimized. In other words, the resulting patches will tend have “smooth” (locally convex) boundaries since complex boundaries have many dual edges between partitions.
When the parameter is true, the dual graph edges are assigned weights equal to the Euclidean length of the corresponding edges of the enclosure. In this case, the edge-cut objective minimizes the perimeter of the resulting patches. This further encourages patches with smooth boundaries, as well as patches that are roughly circular since circles minimize perimeter for a fixed area (see the isoperimetric inequality).
Face Weight
When the METIS_FACE_WEIGHT parameter is false, the dual graph vertices are assigned a weight of 1. In this case, the objective is constrained to ensure the number of vertices in each partition is approximately the same across the partitions. In other words, each patch will tend to have the same number of faces.
When the parameter is true, the dual graph vertices are assigned weights equal to the area of the corresponding faces of the enclosure. In this case, the objective is constrained to ensure the sum of the weights of the vertices assigned to each partition is the same across the partitions. In other words, all patches will have roughly the same total area.
Load Imbalance
The maximum allowed imbalance in the vertex weight constraint is controlled by the
METIS_UFACTOR parameter. The load imbalance for this
constraint is defined to be \(\max_i (w[i]/t[i])\), where \(w[i]\) is the fraction of the overall weight
that is assigned to the \(i\)th partition and \(t[i]\) is the desired target weight for the \(i\)th
partition. Since the METIS algorithm assigns the same target weight to each partition (i.e. the
METIS library parameter tpwgts is NULL), we always have that \(t[i] = 1/\text{NPART}\), where
NPART is the number of requested partitions.
In the case when METIS_FACE_WEIGHT is false, the load imbalance becomes
where \(f[i]\) is the number of faces of the \(i\)th patch, NFACE is the total number of faces in the enclosure, and METIS_FACE_PATCH_RATIO is a parameter of the METIS algorithm. Note that the load imbalance is close to 1 when the \(i\)th patch has roughly as many faces as the value of METIS_FACE_PATCH_RATIO.
In the case when METIS_FACE_WEIGHT is true, the load imbalance becomes
where \(A[i]\) is the area of the \(i\)th patch and AREA is the total surface area of the enclosure. Note that if all patches have a load imbalance close to 1, then the total surface area is roughly evenly distributed among the patches.
By default, METIS_UFACTOR is 1, so the maximum allowed load imbalance is 1.001. This means that the weight of each partition can have a relative difference to the even distribution of the total weight of at most 0.001. Consider increasing METIS_UFACTOR if a strictly even distribution of the total weight (faces or surface area) among patches is not required.
Namelist Parameters
The PATCHES namelist allows a user to configure the METIS algorithm parameters. Although the PATCHES namelist supports many parameters, not all are used by METIS. Specifically, METIS admits two general parameters, and three parameters used during initialization, and 12 parameters passed directly to the graph partitioner.
The general parameters used by METIS are VERBOSITY_LEVEL and MAX_ANGLE. Refer to the PATCHES namelist documentation for more information on those parameters.
The 15 parameters unique to METIS are all prefixed with METIS. We first discuss the three parameters used during initialization, and then briefly present the 12 METIS library parameters passed to the graph partitioner.
Initialization Parameters
METIS_FACE_PATCH_RATIO
Defines the ratio of total faces to total desired patches, and by extension the final number of patches generated.
Type:
REALDomain: metis_face_patch_ratio >= 1.0
Default: meti_face_patch_ratio = 4.0
This parameter determines the number of partitions NPART passed to the METIS graph partitioner:
where NFACE is the total number of faces. Since the METIS library is free to produce less partitions than requested, NPART is not necessarily the final number of patches.
The METIS library must ensure that the constraints on the objective function are satisfied (see partitioning objective), and can thus produce a drastically different number of partitions than requested. In particular, when METIS_FACE_WEIGHT is enabled for an enclosure with faces of vastly different sizes, the requirement to evenly divide the total enclosure surface area among the patches might produce significantly fewer partitions than requested.
Moreover, after the METIS library partitions the dual graph the patch splitting step breaks up disconnected patches which may increase the final patch count. In short, NPART is only a suggestion for the final patch count. Consider tweaking other parameters if an exact patch count is desired.
METIS_EDGE_WEIGHT
Determines whether to weight the edges of the dual graph by the corresponding enclosure edge lengths.
Type:
LOGICALDomain: Must be
.true.or.false.Default: metis_edge_weight =
.true.
This parameter determines whether the Euclidean length of the enclosure edges are assigned as edge weights in the dual graph passed to the METIS library. If the parameter is false, then the dual graph edges are assigned a weight of 1.
Refer to the edge weight section of the METIS algorithm documentation for more information on how the parameter affects the final patch configuration.
METIS_FACE_WEIGHT
Determines whether to weight the vertices of the dual graph by the corresponding enclosure face areas.
Type:
LOGICALDomain: Must be
.true.or.false.Default: metis_face_weight =
.true.
This parameter determines whether the area of the enclosure faces are assigned as vertex weights in the dual graph passed to the METIS library. If the parameter is false, then the dual graph vertices are assigned a weight of 1.
Refer to the face weight section of the METIS algorithm documentation for more information on how the parameter affects the final patch configuration.
METIS library parameters
The METIS graph partitioning routine admits the following integer-valued options that may be specified, though all have reasonable defaults so that none must be specified. See the METIS documentation [1] for more details on these options.
METIS_PTYPE
Specifies the partitioning method.
Type:
INTEGERDomain: metis_ptype \(\in\) {0,1}
Default: metis_ptype = 0
The partitioning methods are encoded as follows:
Value |
Description |
|---|---|
metis_ptype = 0 |
Multilevel recursive bisection |
metis_ptype = 1 |
Multilevel \(k\)-way partitioning |
METIS_OBJTYPE
Specifies the type of objective.
Type:
INTEGERDomain: metis_objtype \(\in\) {0,1}
Default: metis_objtype = 0
The objective types are encoded as follows:
Value |
Description |
|---|---|
metis_objtype = 0 |
Edge-cut minimization. |
metis_objtype = 1 |
Total communication volume minimization. |
METIS_CTYPE
Specifies the matching scheme to be used during coarsening.
Type:
INTEGERDomain: metis_ctype \(\in\) {0,1}
Default: metis_ctype = 1
The matching schemes are encoded as follows:
Value |
Description |
|---|---|
metis_ctype = 0 |
Random matching |
metis_ctype = 1 |
Sorted heavy-edge matching |
METIS_IPTYPE
Specifies the algorithm used during initial partitioning (recursive bisection only).
Type:
INTEGERDomain: metis_iptype \(\in\) {0,1,2,3}
Default: metis_iptype = 0
The partitioning algorithms are encoded as follows:
Value |
Description |
|---|---|
metis_iptype = 0 |
Grows a bisection using a greedy strategy |
metis_iptype = 1 |
Computes a bisection at random followed by a refinement |
metis_iptype = 2 |
Derives a separator from an edge cut. |
metis_iptype = 3 |
Grow a bisection using a greedy node-based strategy |
METIS_NCUTS
Specifies the number of different partitionings that will be computed. The final partitioning will be the one that achieves the best edgecut or communication volume.
Type:
INTEGERDomain: metis_ncuts >= 1
Default: metis_ncuts = 1
METIS_NITER
Specifies the number of iterations of the refinement algorithm at each stage of the uncoarsening process.
Type:
INTEGERDomain: metis_niter >= 1
Default: metis_niter = 10
METIS_SEED
Specifies the seed for the random number generator.
Type:
INTEGERDomain: metis_seed \(\in \mathbb{Z}\)
Default: metis_seed = -1
METIS_MINCONN
Specifies whether the partitioning procedure should seek to minimize the maximum degree of the subdomain graph.
Type:
INTEGERDomain: metis_minconn \(\in\) {0,1}
Default: metis_minconn = 0
The subdomain graph is the graph in which each partition is a node, and edges connect subdomains with a shared interface. This parameter is encoded as follows:
Value |
Description |
|---|---|
metis_minconn = 0 |
Does not explicitly minimize the maximum connectivity. |
metis_minconn = 1 |
Explicitly minimize the maximum connectivity. |
METIS_NO2HOP
Specifies that the coarsening will not perform any 2–hop matchings when the standard matching approach fails to sufficiently coarsen the graph.
Type:
INTEGERDomain: metis_no2hop \(\in\) {0,1}
Default: metis_no2hop = 1
The 2–hop matching is very effective for graphs with power-law degree distributions. This parameter is encoded as follows:
Value |
Description |
|---|---|
metis_no2hop = 0 |
Performs a 2–hop matching. |
metis_no2hop = 1 |
Does not perform a 2–hop matching. |
METIS_CONTIG
Specifies whether the partitioning procedure should produce partitions that are contiguous.
Type:
INTEGERDomain: metis_contig \(\in\) {0,1}
Default: metis_contig = 0
If the dual graph of the mesh is not connected this option is ignored. This parameter is encoded as follows:
Value |
Description |
|---|---|
metis_contig = 0 |
Does not force contiguous partitions. |
metis_contig = 1 |
Forces contiguous partitions. |
METIS_UFACTOR
Specifies the maximum allowed load imbalance among the partitions.
Type:
INTEGERDomain: metis_ufactor >= 1
Default: metis_ufactor = 1
A value of \(n\) indicates that the allowed load imbalance is \((1+n)/1000\). The default is \(1\) for recursive bisection (i.e., an imbalance of \(1.001\)) and the default value is \(30\) for \(k\)-way partitioning (i.e., an imbalance of \(1.03\)).
METIS_DBGLVL
Specifies the amount and type of diagnostic information that will be written to stderr by the partitioning procedure.
Type:
INTEGERDomain: metis_dbglvl >= 1
Default: metis_dbglvl = 0
The default \(0\) means no output. Use \(1\) to write some basic information. Refer to the METIS documentation [1] for the many other possible values and the output they generate.
